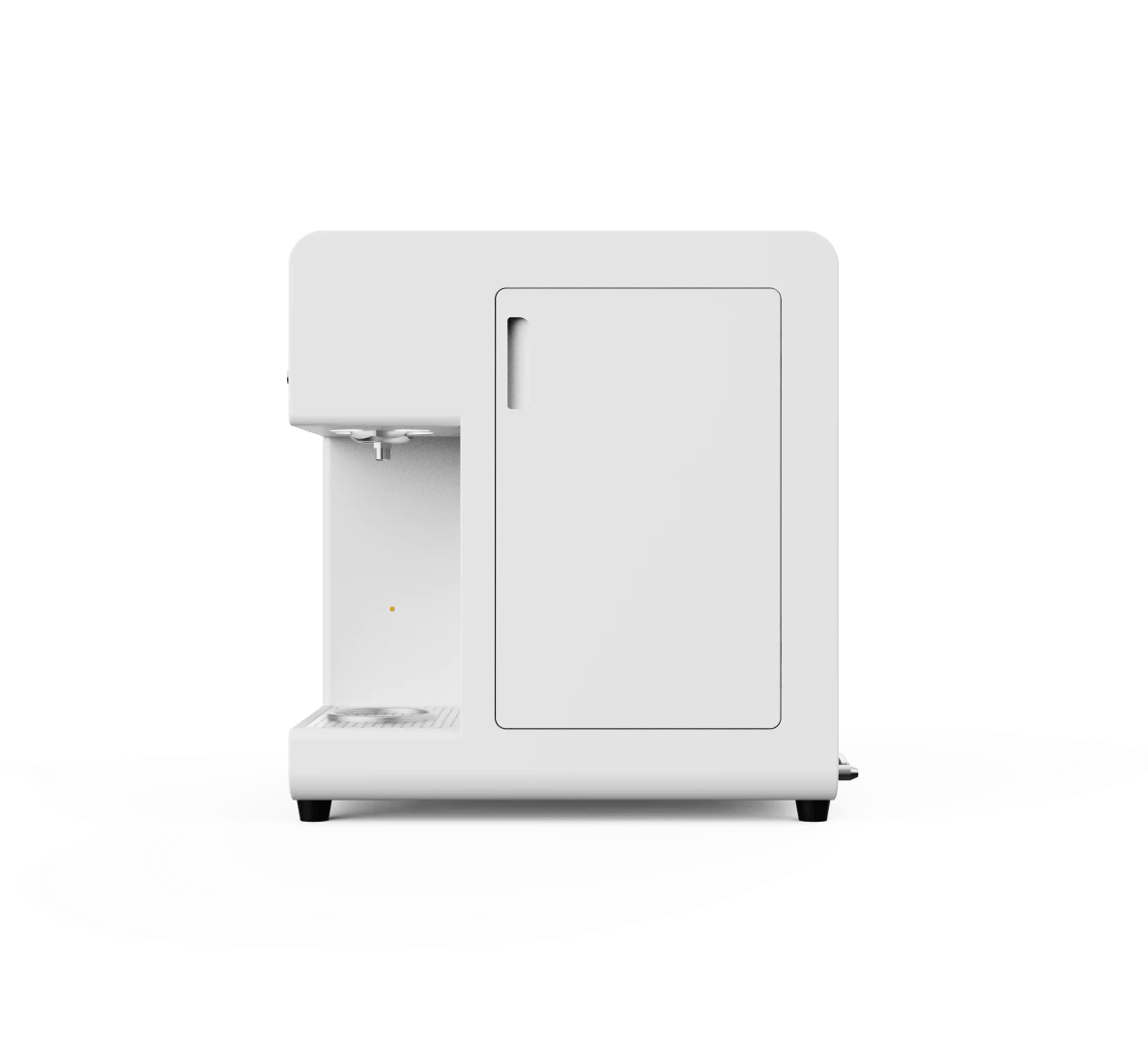

ChiuVention SmartFill Liquid Filling Machine
The SmartFill is a washing color fastness tester auxiliary equipment, that comes with a weighing balance, automatic soap dispensing according to the bath ratio, automatic preheating soap, and automatic counting of steel beads, then the soap liquid and steel beads will achieve simultaneous output, at the same time,it is equipped with automatic soap insulation function, you can do the washing color fastness test without waiting, SmartFill can greatly enhance the efficiency of the test, speed up the order preparation process of textile enterprises, thereby enhancing economic efficiency.Request a Quote Download Brochure
Sample weighing, soap dispensing according to the bath ratio, steel ball counting, automatic heating and heat preservation, etc, all in one step.
Speed up testing and shorten the order cycle
Improve the washing color fastness test efﬁciency greatly, to help companies speed up the corresponding order preparation process, higher economic efﬁciency.
Equipped with the Internet of Things, the operator can set the bath ratio and soap temperature on the cell phone and make an appointment to reﬁll the heating. The brand can also monitor and trace the supplier’s laboratory tests online through the cell phone.
Helpful for more accurate testing
A balance of one hundredth high-precision to weigh the sample, the soap is released strictly according to the bath ratio, accurate to 1 ml, a signiﬁcant increase in accuracy than manual operation, so that each test is accurate and reliable.
Well-known brands are in using
Anta supply chain chose SmartFill, more quickly and efﬁciently mastered the garment color fastness data, so that corporate brand and quality management became more scientiﬁc.
- Balance: weighing limit 600g, accuracy ± 0.01g
- Soap tank: working volume 6500ml
- Soap single pumping volume: 2.5~1000ml,
- liquid output accuracy: ±5%
- Soap pumping speed: ≤ 28ml / s
- Temperature control range: 0~65℃, precision ±1℃
- Steel ball filling speed: 10pcs/s
- Power: AC 230V 50/60Hz 6.5A
- Weight: 45kg
- Dimension: 500x500x520mm (L*W*H)
